Features:

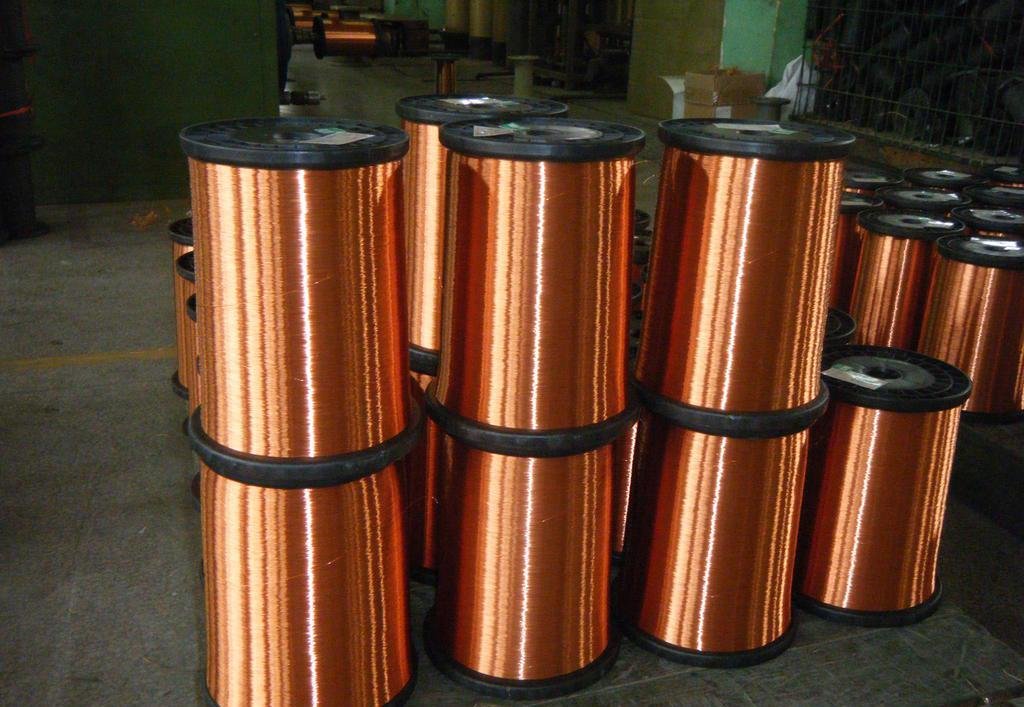

The copper-clad aluminum enameled wire is a new type of electromagnetic wire using copper clad aluminum material as the inner conductor. Its characteristics are between copper and aluminum, combining the excellent electrical conductivity of copper and the light weight of aluminum.



1. DC resistivity: The DC resistivity of copper clad aluminum wire is about 1.5 times that of pure copper wire; when the resistance value is the same, the weight of copper clad aluminum wire is about 1/2 of that of pure copper wire.

2. Good brazability: Since the copper clad aluminum wire is coated with a layer of pure copper concentrically, it has the solderability of pure copper wire, and does not have to be specially treated like aluminum wire. 3. Light weight: The copper clad aluminum wire density is 1/3 of the pure copper wire of the same wire diameter, which is effective for reducing the weight of the cable and the coil +

Production range: 0.12-2.80mm

Suitable insulators: UE, PE, EIW, EIW/AIW

Suitable self-adhesive film: as with copper wire, alcohol self-adhesive paint and hot air self-adhesive paint can be used to perform the standard: IEC/NEMA/JIS

Application areas: power tools, ballasts; mainly used in the windings of transformers, motors, engines and various electrical devices
