Copper-Aluminium Bimetal Clad Busbar

Editor ：frank Time ：2023-04-27 11:15:18

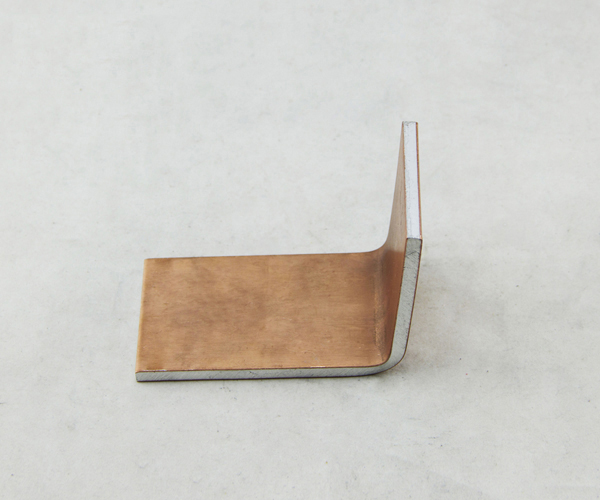

Copper-Aluminium Bimetal Clad Busbar

Production of copper clad busbar is specialized in the production of fully coated method, make the product form all around the package type copper aluminum composite material, than pure copper platoon light weight, the same specifications of copper clad busbar weighs only about 40% of the pure copper platoon.Copper clad aluminum metal processing performance is good, easy to bend, more copper has less rebound characteristics, easy drilling, cutting and punching, can be processed into various shaped mother row.

The copper clad aluminum plate produced by our company is evenly distributed, and the physical property is stable and reliable. It is a kind of resource saving product, which is specially designed to replace the pure copper platoon and the new material of pure aluminum platoon.It is widely used in all kinds of power equipment such as busbar, power distribution cabinet, switch cabinet, motor control center, busbar room, transformer and so on.



Copper clad busbar bus duct is a kind of pure busbar as core bus duct conductive row row, with a certain thickness of copper plate as outer conductor and installation interface bus duct conductive row, composition of copper clad aluminum bus duct conductive row.

This material in Europe already have decades of practical application, the international big companies such as ABB, will it as a strategic technology reserve and is widely used and early with standard specification in its list of their products.

Copper clad aluminum bus duct conductive row not only can instead of pure copper platoon bus duct conductive row, can also be applied in other in pure copper platoon as current situation, use the copper-coated busbar instead of the original copper platoon, effectively reduce the cost of the bus is about 50%.

Technical parameter :
Cladding strength : >=12N/mm;
Cladding rate : 100% ;
Cutting strength : >=35 Mpa;
Stretch strength : 90—130 Mpa;
Elongation : <=35% ;
Direct Current resistivity : <=0.0245 O.mm2/m

Continuous Casting
- High bonding-Strength; Metallurgical & Atomic
- The Length at option of requirement
- Short Production Flow
- Continuous production with high efficiency

Other CCA Process
- Mechanical Bonding; Weak  bonding  Strength
- No large Size
- Limited length
- No continuous Production

Theoretical Table of Length & Weight
Item Size Thick
/mm 		Width
/mm 		Length
/mm 		Volume
/cm³ 		CCA BUSBAR COPPER BAR
kgs/
meter 		Length
m/MT 		Density
g/cm³ 		kgs/
meter 		Length
m/MT 		Density
g/cm³
1 20*4 4 20 1000 81.93 0.37 2676.6 4.56 0.73 1372.94 8.89
2 25*4 4 25 1000 101.93 0.46 2151.4 4.56 0.91 1103.56 8.89
3 30*4 4 30 1000 121.93 0.56 1798.6 4.56 1.08 922.54 8.89
4 30*5 5 30 1000 151.93 0.69 1443.4 4.56 1.35 740.38 8.89
5 30*6 6 30 1000 181.93 0.83 1205.4 4.56 1.62 618.29 8.89
6 30*8 8 30 1000 241.93 1.1 906.5 4.56 2.15 464.95 8.89
7 30*10 10 30 1000 301.93 1.38 726.3 4.56 2.68 372.56 8.89
8 40*4 4 40 1000 161.93 0.74 1354.3 4.56 1.44 694.66 8.89
9 40*5 5 40 1000 201.93 0.92 1086 4.56 1.8 557.05 8.89
10 40*6 6 40 1000 241.93 1.1 906.5 4.56 2.15 464.95 8.89
11 40*8 8 40 1000 321.93 1.47 681.2 4.56 2.86 349.41 8.89
12 40*10 10 40 1000 401.93 1.83 545.6 4.56 3.57 279.86 8.89
13 50*5 5 50 1000 251.93 1.07 934 4.25 2.24 446.5 8.89
14 50*6 6 50 1000 301.93 1.28 779.3 4.25 2.68 372.56 8.89
15 50*8 8 50 1000 401.93 1.71 585.4 4.25 3.57 279.86 8.89
16 50*10 10 50 1000 501.93 2.13 468.8 4.25 4.46 224.11 8.89
17 60*5 5 60 1000 301.93 1.28 779.3 4.25 2.68 372.56 8.89
18 60*6 6 60 1000 361.93 1.54 650.1 4.25 3.22 310.79 8.89
19 60*8 8 60 1000 481.93 2.05 488.2 4.25 4.28 233.41 8.89
20 60*10 10 60 1000 601.93 2.56 390.9 4.25 5.35 186.88 8.89
21 80*6 6 80 1000 481.93 2.05 488.2 4.25 4.28 233.41 8.89
22 80*8 8 80 1000 641.93 2.73 366.5 4.25 5.71 175.23 8.89
23 80*10 10 80 1000 801.93 3.41 293.4 4.25 7.13 140.27 8.89
24 100*6 6 100 1000 601.93 2.56 390.9 4.25 5.35 186.88 8.89
25 100*8 8 100 1000 801.93 3.41 293.4 4.25 7.13 140.27 8.89
26 100*10 10 100 1000 1001.93 4.26 234.8 4.25 8.91 112.27 8.89
27 120*8 8 120 1000 961.93 4.09 244.6 4.25 8.55 116.94 8.89
28 120*10 10 120 1000 1201.93 5.11 195.8 4.25 10.69 93.59 8.89

Current Carrying Capacity & Temperature Rise Table of CCA Busbar
（Width× Thickness） Temperature rise(K) under Ambient Temperature25 ℃ (Amperes)
mm× mm VPCu =25% VPCu =30%
  50K 65K 75K 50K 65K 75K
15.00×4.00 196 210 225 200 213 229
20.00×4.00 254 273 293 259 277 298
25.00×4.00 314 339 363 321 345 370
30.00×4.00 336 362 387 347 372 399
30.00×5.00 438 453 489 450 466 503
30.00×6.00 499 539 579 514 554 595
30.00×8.00 596 644 697 613 662 717
30.00×10.00 658 712 745 676 733 767
40.00×4.00 465 500 532 479 513 547
40.00×5.00 554 605 652 570 622 670
40.00×6.00 630 679 728 649 698 750
40.00×8.00 746 806 873 767 829 897
40.00×10.00 814 896 977 837 921 1005
50.00×5.00 684 736 788 703 758 810
50.00×6.00 777 836 898 799 861 923
50.00×8.00 918 990 1072 944 1019 1103
50.00×10.00 998 1061 1139 1026 1092 1172
60.00×5.00 781 858 918 804 882 945
60.00×6.00 886 953 1025 911 980 1053
60.00×8.00 1041 1124 1216 1070
