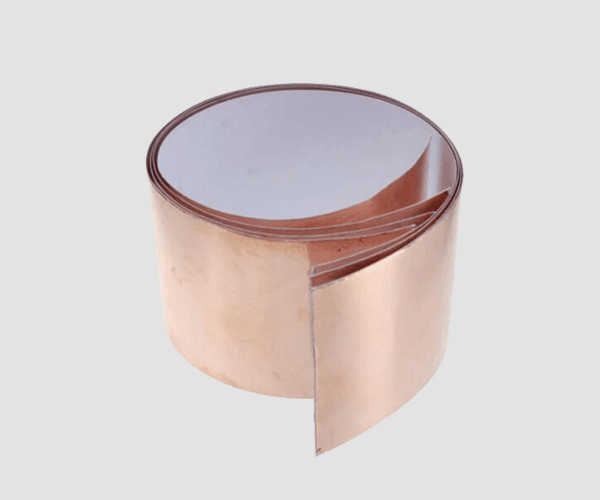

Copper-Aluminium Bimetal Clad Sheet
Copper-Aluminium Bimetal Clad Sheet
Continuous Casting
- High bonding-Strength; Metallurgical & Atomic
- The Length at option of requirement
- Short Production Flow
- Continuous production with high efficiency
Other CCA Process
- Mechanical Bonding; Weak bonding Strength
- No large Size
- Limited length
- No continuous Production
Copper-Aluminium Bimetal Clad Sheet Technical Parameter:
Continuous Casting
- High bonding-Strength; Metallurgical & Atomic
- The Length at option of requirement
- Short Production Flow
- Continuous production with high efficiency
Other CCA Process
- Mechanical Bonding; Weak bonding Strength
- No large Size
- Limited length
- No continuous Production
Copper-Aluminium Bimetal Clad Sheet Technical Parameter:
|
Secification(thickness * width)
|
0.1-0.5mm * 30-800mm
|
|
|
Coer and Aluminum weight ratio
|
Cu:AL
|
32%-40%: 60%-68%
|
|
Coer and Aluminum volume ratio
|
Cu:AL
|
15-20: 80-85
|
|
Density(g/cm3)
|
3.5-3.9
|
|
|
Resistivity(Ωmm2/m)
|
<0.019
|
|
|
Tensile Strength(N/mm2)
|
>120
|
|
|
Elongation (%)
|
27-38
|
|
|
eeling Strength(N/mm)
|
>12
|
|
Theoretical Table of Length & Weight
|
Item
|
Size
|
Thick
/mm |
Width
/mm |
Length
/mm |
Volume
/cm³ |
CCA BUSBAR
|
COPPER BAR
|
||||
|
kgs/meter
|
Length
m/MT |
Density
g/cm³ |
kgs/meter
|
Length
m/MT |
Density
g/cm³ |
||||||
|
1
|
20*4
|
4
|
20
|
1000
|
81.93
|
0.37
|
2676.6
|
4.56
|
0.73
|
1372.94
|
8.89
|
|
2
|
25*4
|
4
|
25
|
1000
|
101.93
|
0.46
|
2151.4
|
4.56
|
0.91
|
1103.56
|
8.89
|
|
3
|
30*4
|
4
|
30
|
1000
|
121.93
|
0.56
|
1798.6
|
4.56
|
1.08
|
922.54
|
8.89
|
|
4
|
30*5
|
5
|
30
|
1000
|
151.93
|
0.69
|
1443.4
|
4.56
|
1.35
|
740.38
|
8.89
|
|
5
|
30*6
|
6
|
30
|
1000
|
181.93
|
0.83
|
1205.4
|
4.56
|
1.62
|
618.29
|
8.89
|
|
6
|
30*8
|
8
|
30
|
1000
|
241.93
|
1.1
|
906.5
|
4.56
|
2.15
|
464.95
|
8.89
|
|
7
|
30*10
|
10
|
30
|
1000
|
301.93
|
1.38
|
726.3
|
4.56
|
2.68
|
372.56
|
8.89
|
|
8
|
40*4
|
4
|
40
|
1000
|
161.93
|
0.74
|
1354.3
|
4.56
|
1.44
|
694.66
|
8.89
|
|
9
|
40*5
|
5
|
40
|
1000
|
201.93
|
0.92
|
1086
|
4.56
|
1.8
|
557.05
|
8.89
|
|
10
|
40*6
|
6
|
40
|
1000
|
241.93
|
1.1
|
906.5
|
4.56
|
2.15
|
464.95
|
8.89
|
|
11
|
40*8
|
8
|
40
|
1000
|
321.93
|
1.47
|
681.2
|
4.56
|
2.86
|
349.41
|
8.89
|
|
12
|
40*10
|
10
|
40
|
1000
|
401.93
|
1.83
|
545.6
|
4.56
|
3.57
|
279.86
|
8.89
|
|
13
|
50*5
|
5
|
50
|
1000
|
251.93
|
1.07
|
934
|
4.25
|
2.24
|
446.5
|
8.89
|
|
14
|
50*6
|
6
|
50
|
1000
|
301.93
|
1.28
|
779.3
|
4.25
|
2.68
|
372.56
|
8.89
|
|
15
|
50*8
|
8
|
50
|
1000
|
401.93
|
1.71
|
585.4
|
4.25
|
3.57
|
279.86
|
8.89
|
|
16
|
50*10
|
10
|
50
|
1000
|
501.93
|
2.13
|
468.8
|
4.25
|
4.46
|
224.11
|
8.89
|
|
17
|
60*5
|
5
|
60
|
1000
|
301.93
|
1.28
|
779.3
|
4.25
|
2.68
|
372.56
|
8.89
|
|
18
|
60*6
|
6
|
60
|
1000
|
361.93
|
1.54
|
650.1
|
4.25
|
3.22
|
310.79
|
8.89
|
|
19
|
60*8
|
8
|
60
|
1000
|
481.93
|
2.05
|
488.2
|
4.25
|
4.28
|
233.41
|
8.89
|
|
20
|
60*10
|
10
|
60
|
1000
|
601.93
|
2.56
|
390.9
|
4.25
|
5.35
|
186.88
|
8.89
|
|
21
|
80*6
|
6
|
80
|
1000
|
481.93
|
2.05
|
488.2
|
4.25
|
4.28
|
233.41
|
8.89
|
|
22
|
80*8
|
8
|
80
|
1000
|
641.93
|
2.73
|
366.5
|
4.25
|
5.71
|
175.23
|
8.89
|
|
23
|
80*10
|
10
|
80
|
1000
|
801.93
|
3.41
|
293.4
|
4.25
|
7.13
|
140.27
|
8.89
|
|
24
|
100*6
|
6
|
100
|
1000
|
601.93
|
2.56
|
390.9
|
4.25
|
5.35
|
186.88
|
8.89
|
|
25
|
100*8
|
8
|
100
|
1000
|
801.93
|
3.41
|
293.4
|
4.25
|
7.13
|
140.27
|
8.89
|
|
26
|
100*10
|
10
|
100
|
1000
|
1001.93
|
4.26
|
234.8
|
4.25
|
8.91
|
112.27
|
8.89
|
|
27
|
120*8
|
8
|
120
|
1000
|
961.93
|
4.09
|
244.6
|
4.25
|
8.55
|
116.94
|
8.89
|
|
28
|
120*10
|
10
|
120
|
1000
|
1201.93
|
5.11
|
195.8
|
4.25
|
10.69
|
93.59
|
8.89
|
Current Carrying Capacity & Temperature Rise Table of CCA Busbar
|
（Width× Thickness）
|
Temperature rise(K) under Ambient Temperature25 ℃ (Amperes)
|
|||||
|
mm× mm
|
VPCu =25%
|
VPCu =30%
|
||||
|
|
50K
|
65K
|
75K
|
50K
|
65K
|
75K
|
|
15.00×4.00
|
196
|
210
|
225
|
200
|
213
|
229
|
|
20.00×4.00
|
254
|
273
|
293
|
259
|
277
|
298
|
|
25.00×4.00
|
314
|
339
|
363
|
321
|
345
|
370
|
|
30.00×4.00
|
336
|
362
|
387
|
347
|
372
|
399
|
|
30.00×5.00
|
438
|
453
|
489
|
450
|
466
|
503
|
|
30.00×6.00
|
499
|
539
|
579
|
514
|
554
|
595
|
|
30.00×8.00
|
596
|
644
|
697
|
613
|
662
|
717
|
|
30.00×10.00
|
|
|||||
